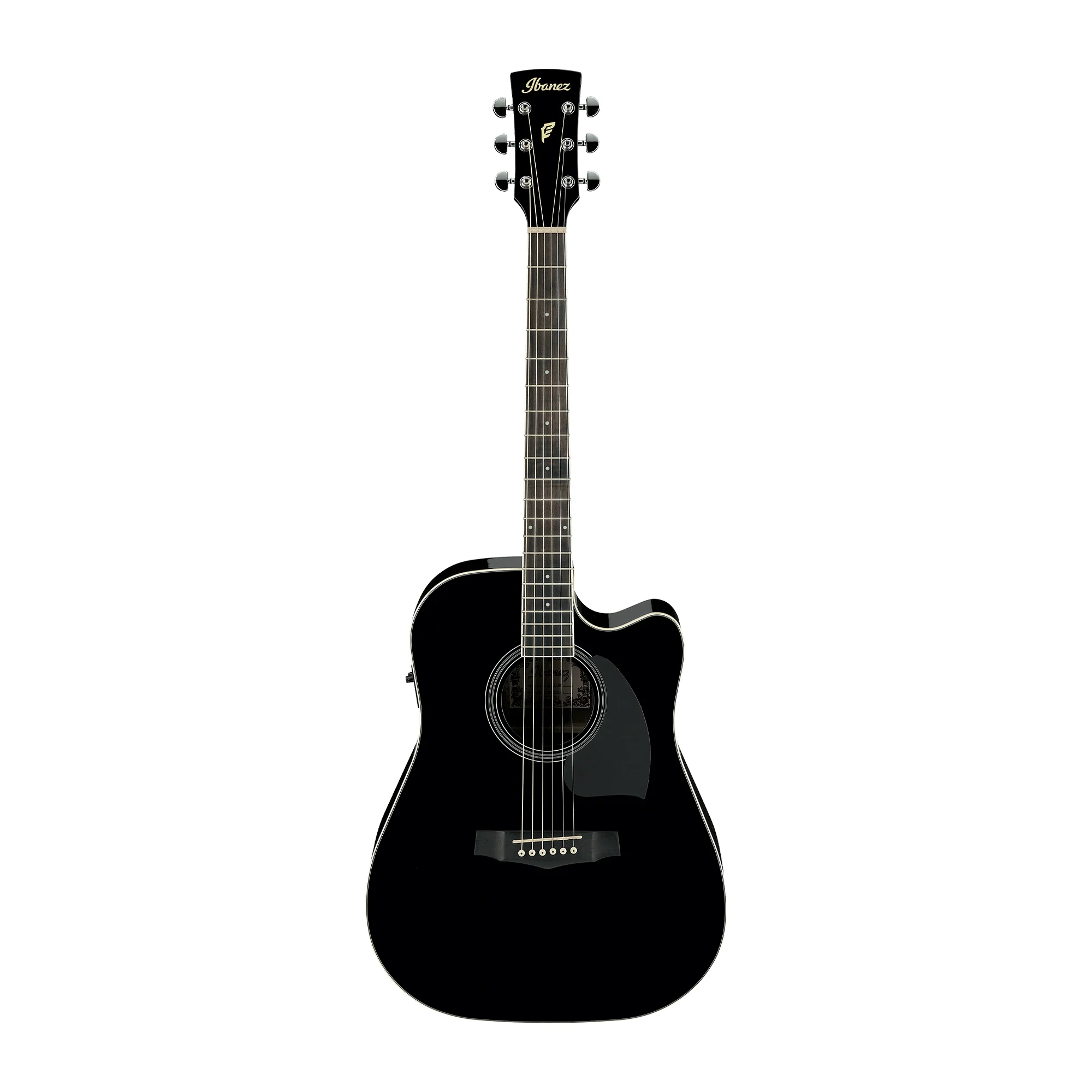

Acoustic Guitar

• SPECS

  • body shape
  • Cutaway Dreadnought body

  • top
  • Spruce top

  • back & sides
  • Okoume back & Okoume sides

  • neck
  • PFNyatoh neck

  • fretboard
  • Laurel fretboard

  • bridge
  • Laurel bridge

  • inlay
  • White dot inlay

  • soundhole rosette
  • Black & White multi

  • tuning machine
  • Chrome Die-cast tuners

  • number of frets
  • 20

  • bridge pins
  • Ibanez Advantage™

  • strings
  • Ibanez IACS6C

  • string gauge
  • .012/.016/.024/.032/.042/.053

  • string space
  • 11mm

  • factory tuning
  • 1E,2B,3G,4D,5A,6E

  • pickup
  • Ibanez Undersaddle

  • preamp
  • Ibanez AEQ-2T preamp w/Onboard tuner

  • output jack
  • 1/4" output

• NECK DIMENSIONS

  • • Scale :
    • 648mm
    • a : Width
    • 42mm at NUT
    • b : Width
    • 54mm at 14F
    • c : Thickness
    • 21mm at 1F
    • d : Thickness
    • 22.5mm at 7F
    • Radius :
    • 240mmR
