Neumann Stereo Piano

Neumann MCM 114 STEREO SET PIANO is a complete set for using the Miniature Clip Mic (MCM) system inside a grand piano.

This MCM 114 STEREO SET PIANO package will connect to a mixer (requiring +48v phantom power), or you can easily remove the MCM100 XLR adapter, and plug the cable straight into a Sennhieser EW-D or EW100 / 500 G4 transmitter. If you need to use a different wireless system, other cables are additionally available, including AC32 (Lemo 3 pin), AC33 (MicroDot), and AC34 (mini 4-pin XLR).

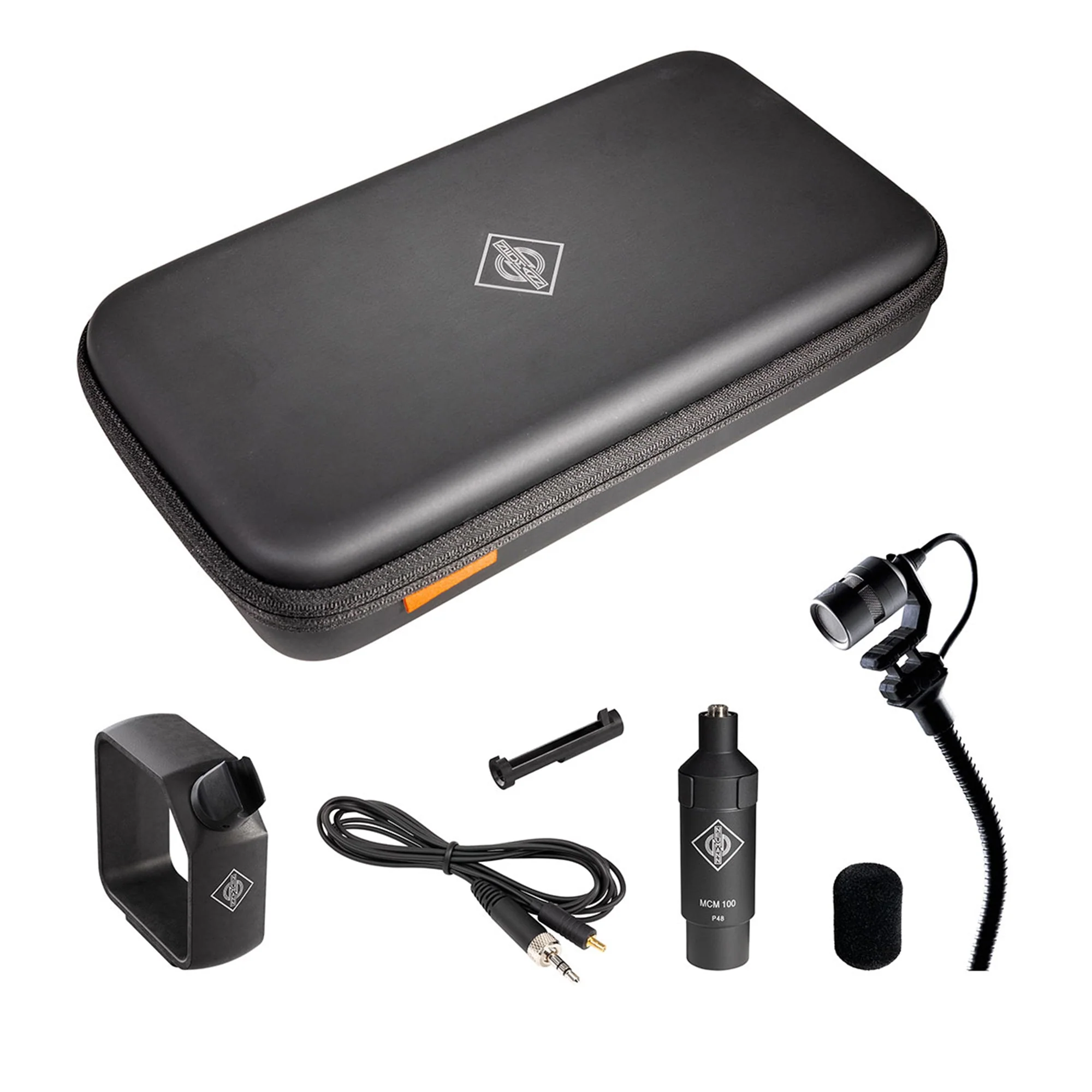

In the package:

• KK 14 – Cardioid capsule head
• SH 150 – 15cm gooseneck
• AC 31 – 1.8 m connection cable
• WS 110 – foam windscreen
• MCM 100 – XLR output stage
• MC 8 – magnetic clip for grand piano
• Safety Guide
• Quick Guide
• Softcase

Acoustical operating principle	Pressure gradient transducer
Directional Pattern	Cardioid
Frequency Range	20 Hz … 20 kHz
Sensitivity at 1 kHz into 1 kohm	2.8 to 4.4 mV/Pa
Rated Impedance	50 Ohms
Rated load impedance	1000 Ohms
Equivalent noise level, CCIR 1	31 dB
Equivalent noise level, A-weighted 2	23 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL) 3	63 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL) 4	23 dB
Operating temperature range	0 °C – +40 °C
Operating Humidity range	0 %…90 % rel. hum
Storage temperature range	−20 °C – +70 °C
Storage Humidity range	0 %…95 % rel. hum
