PROEL DIVA12A – Professional Active Loudspeaker
PROEL DIVA12A – Professional Active Loudspeaker
The PROEL DIVA12A is a high-performance digitally processed active loudspeaker designed for live sound, DJs, public address (PA) applications, and stage monitoring. Powered by a Class D amplifier with advanced DSP control, it delivers clarity, reliability, and powerful sound projection. Featuring Bluetooth connectivity, versatile inputs, and selectable DSP presets, it provides modern flexibility for professional sound reinforcement.
Its rugged yet lightweight polypropylene enclosure makes it portable and durable, while integrated rigging points, pole-mounting, and wedge-monitor capability allow versatile stage use. With a peak output of 1000 W and wide frequency coverage, the DIVA12A is built to handle diverse performance environments.
Key Features

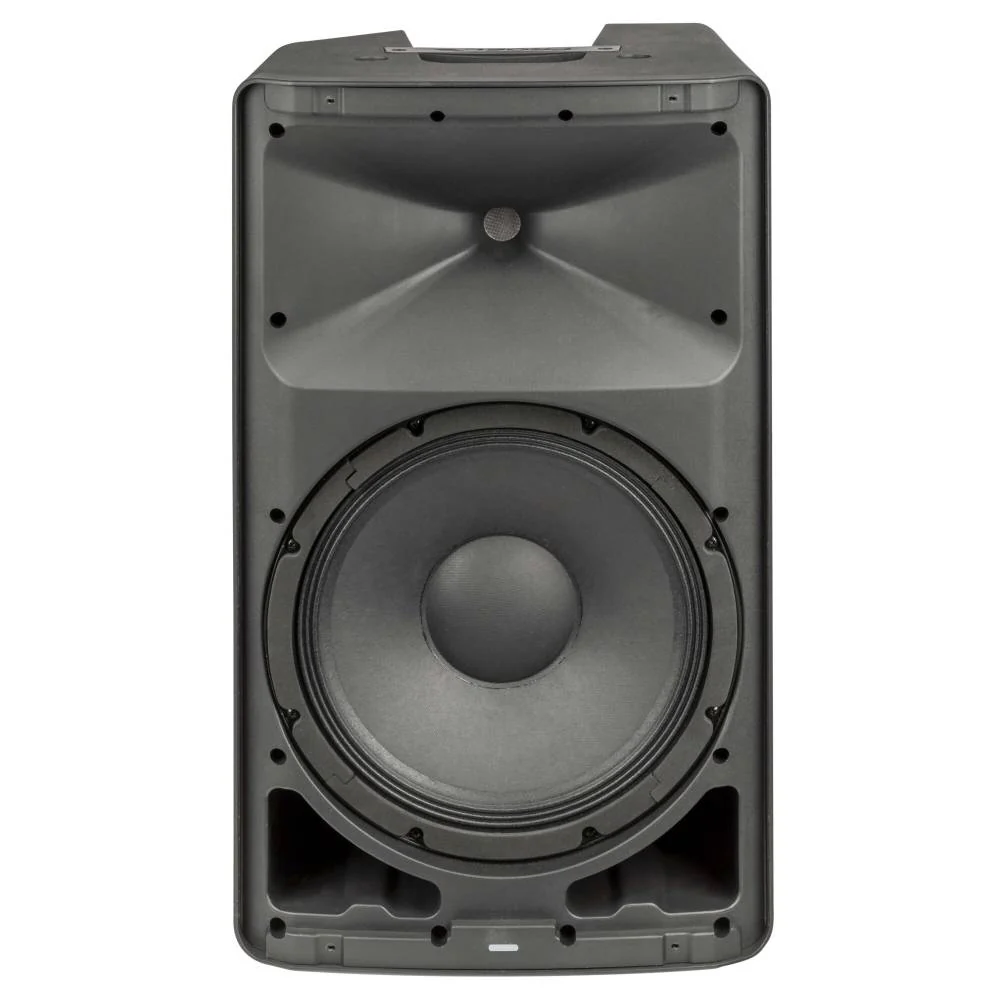

- Powerful 2-way system: 12″ woofer + 1″ titanium compression driver.
- Class D amplification: 1000 W peak power with clean, efficient output.
- Advanced DSP: 24-bit processor with FIR filters and 5 selectable presets (MUSIC, LIVE, DJ, MONITOR, SPEECH).
- Bluetooth 5.0: Wireless audio streaming with Stereo Link (TWS) capability.

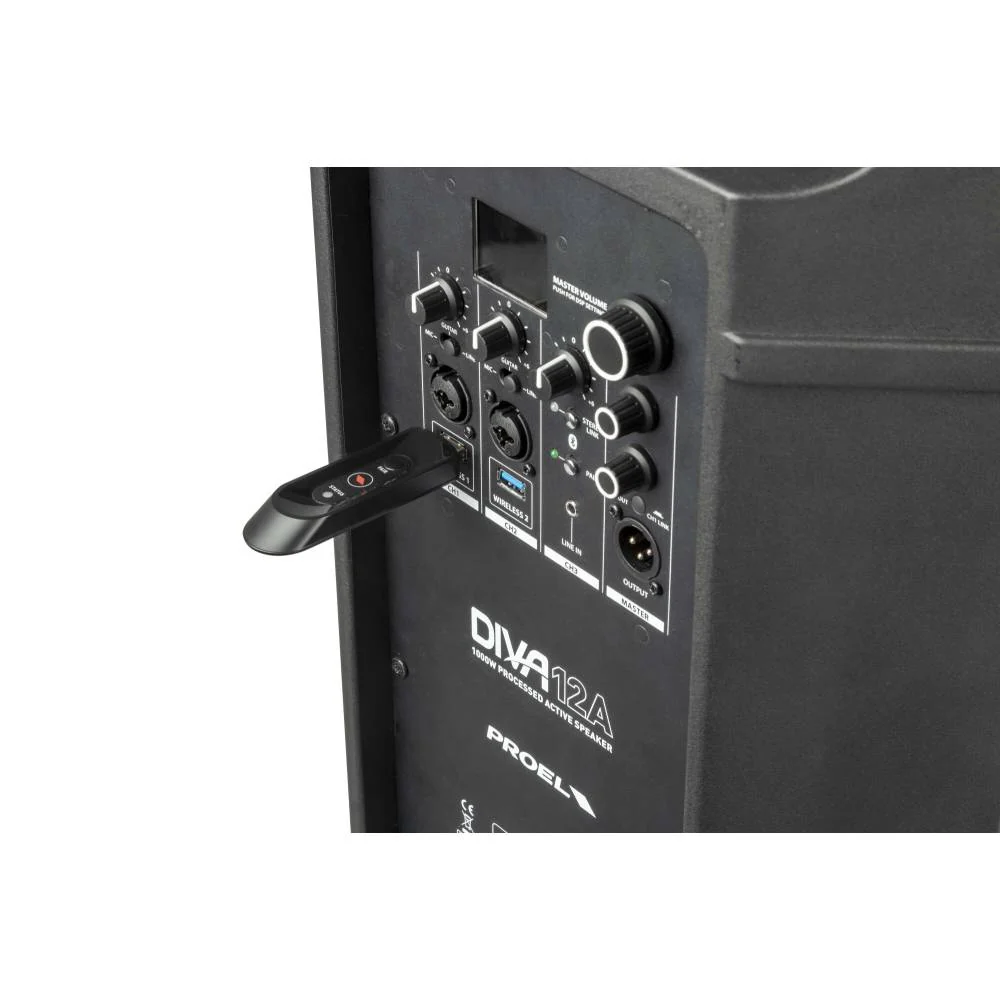

- Multiple inputs: MIC/LINE combo, stereo mini-jack, USB ports for wireless modules.
- Portable & versatile: Ergonomic handles, pole socket, wedge-monitor design, and flying points.
Specifications
| Category | Detail |
|---|---|
| Configuration / Enclosure | 2-way vented bass-reflex enclosure |
| Woofer | 12″ long-excursion woofer with 2″ voice coil |
| HF Driver | 1″ titanium compression driver, 1.35″ voice coil |
| Dispersion | 90° horizontal × 60° vertical |
| Amplifier Power | 1000 W peak (LF: 400 W Class D, HF: 100 W Class AB) |
| Frequency Response | 50 Hz – 20 kHz |
| Max SPL | 127 dB |
| Inputs | 2 × MIC/LINE (XLR / ¼″), 1 × stereo 3.5 mm jack, 2 × USB wireless ports |
| Outputs | 1 × XLR (MIX OUT / CH1 LINK) |
| DSP / Processing | FIR filters, 24-bit processing, 5 presets (MUSIC, LIVE, DJ, MONITOR, SPEECH) |
| Bluetooth | Version 5.0 with Stereo Link (TWS) |

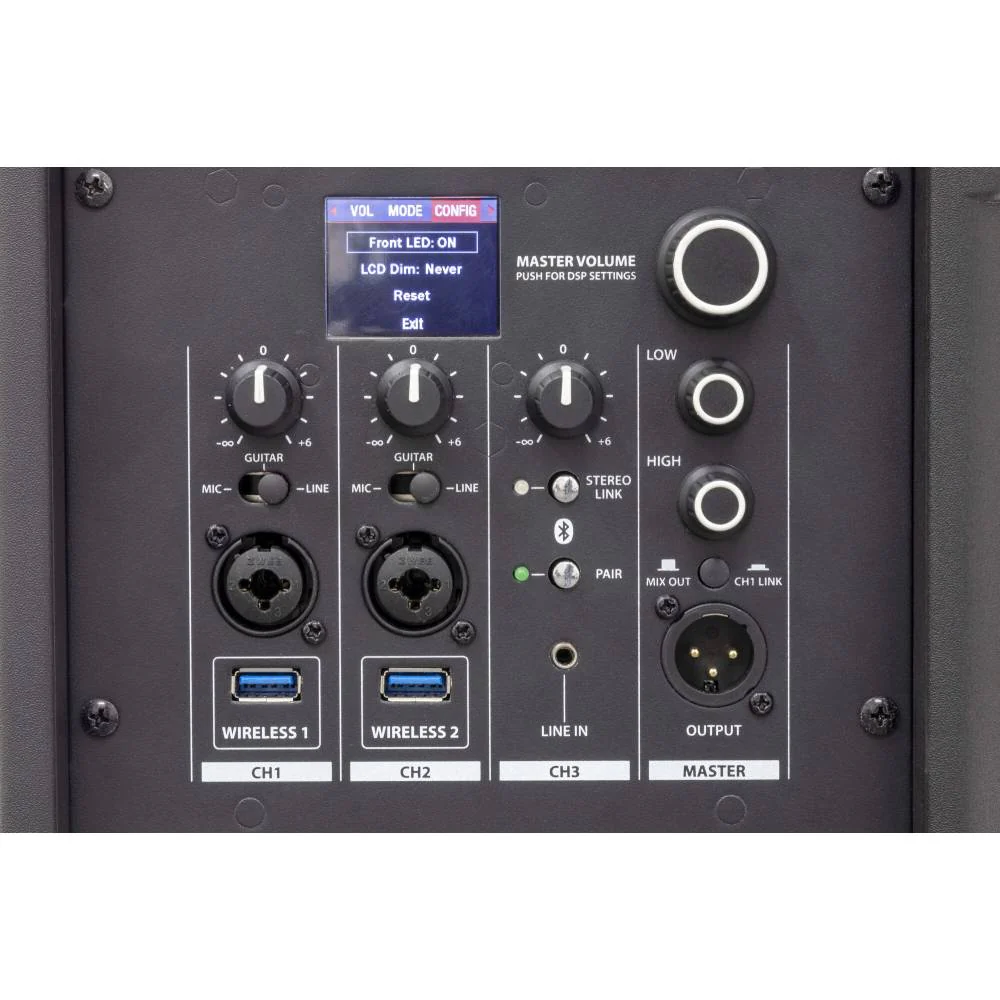

| Controls | LCD DSP menu, encoder knob, channel level, EQ controls |
| Cabinet / Build | Polypropylene, lightweight & rugged |

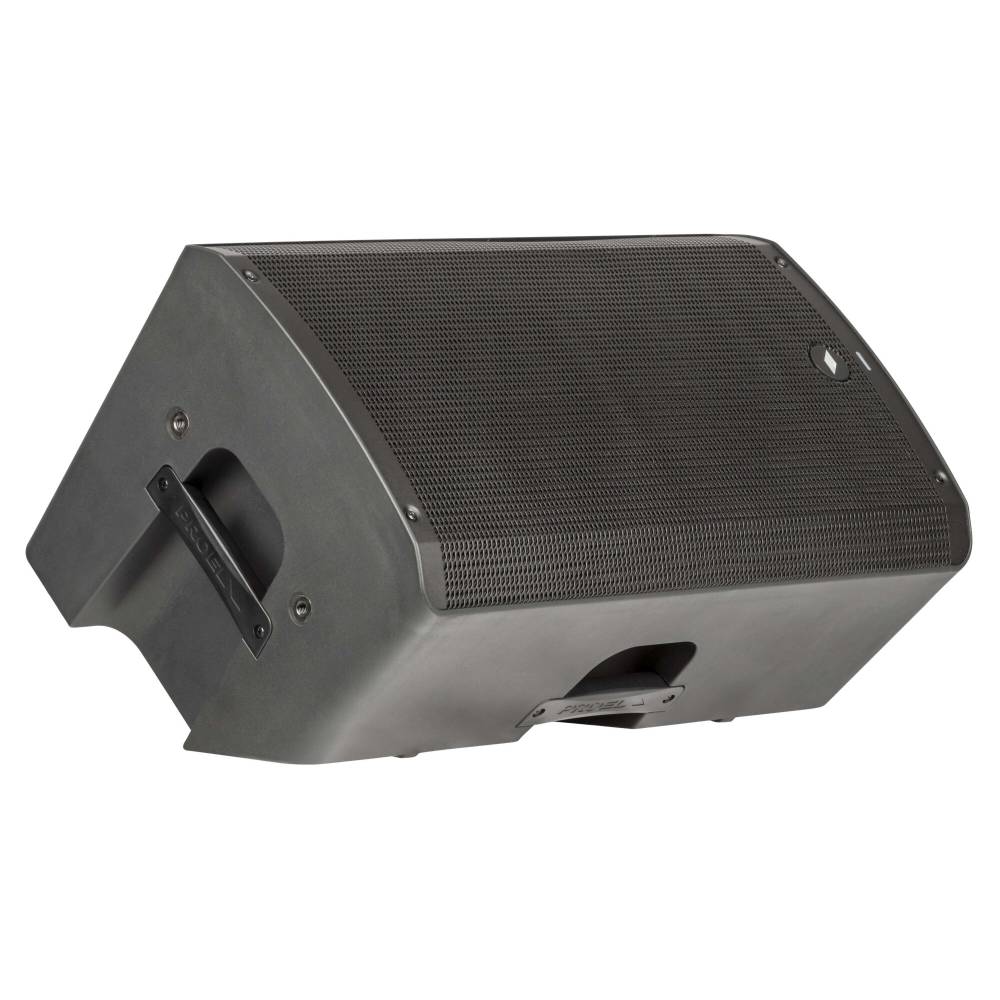

| Mounting | 35 mm pole socket, 4 × M10 flying points, 45° wedge monitor angle |
| Dimensions | 364 × 617 × 346 mm |
| Weight | 16 kg |
| Power Supply | 100–120 V / 220–240 V (switchable), 50/60 Hz |
Why Choose the PROEL DIVA12A?
- All-in-one professional sound solution: Integrated amplification and DSP.
- Powerful yet portable: Lightweight cabinet with ergonomic design.
- Wireless connectivity: Bluetooth 5.0 with TWS pairing for modern setups.
- Versatile usage: Ideal for DJs, bands, speeches, events, and stage monitoring.
Performance You Can Rely On
The PROEL DIVA12A combines modern DSP control, powerful sound projection, and flexible connectivity, making it an indispensable choice for musicians, DJs, and event organizers. Its rugged build, advanced features, and Bluetooth capability ensure consistent performance in any environment.
